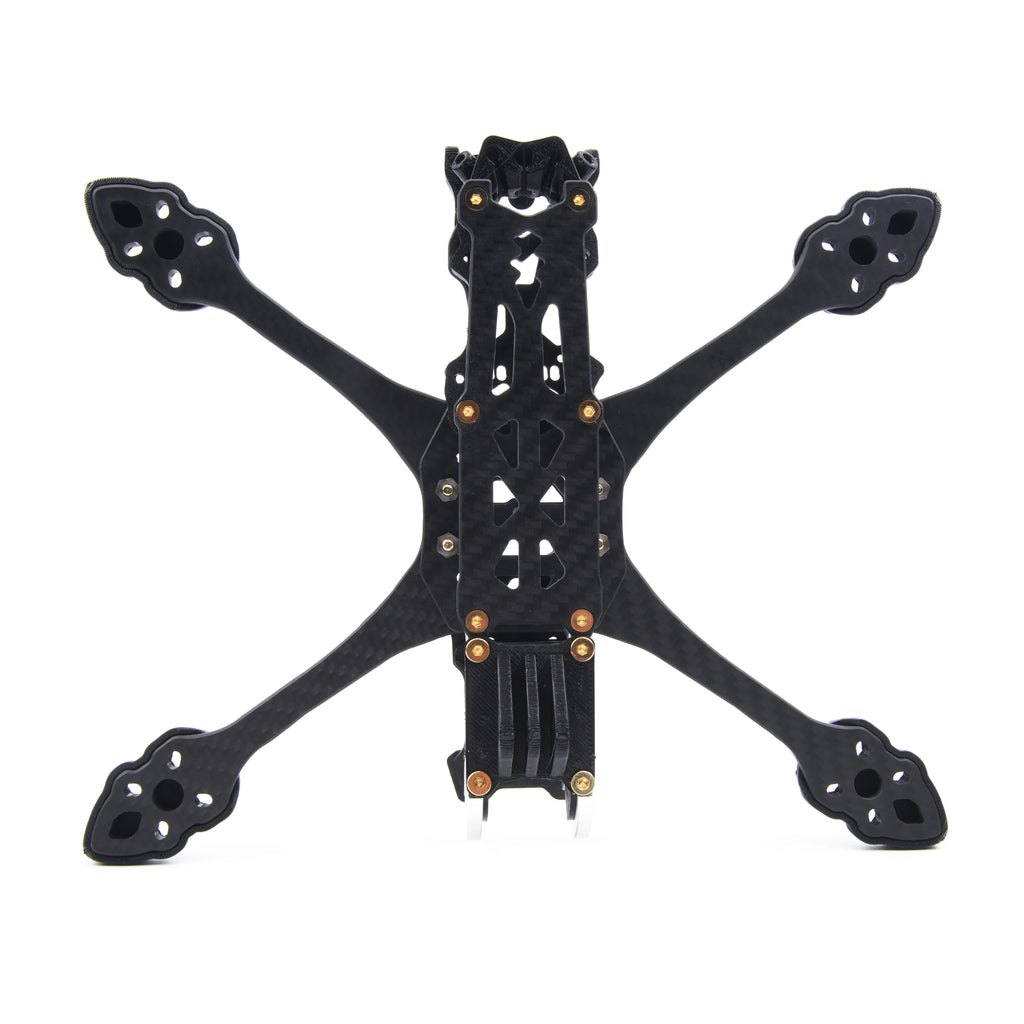

Features:

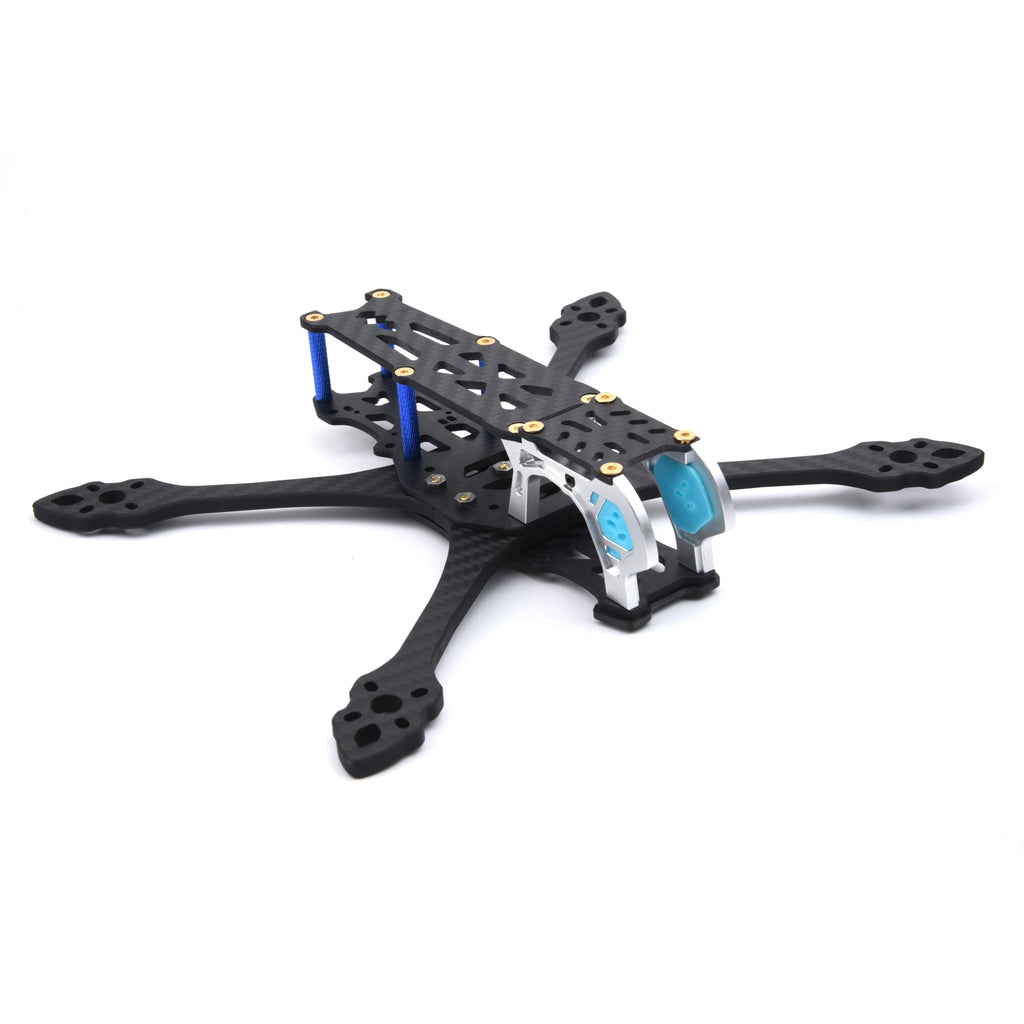

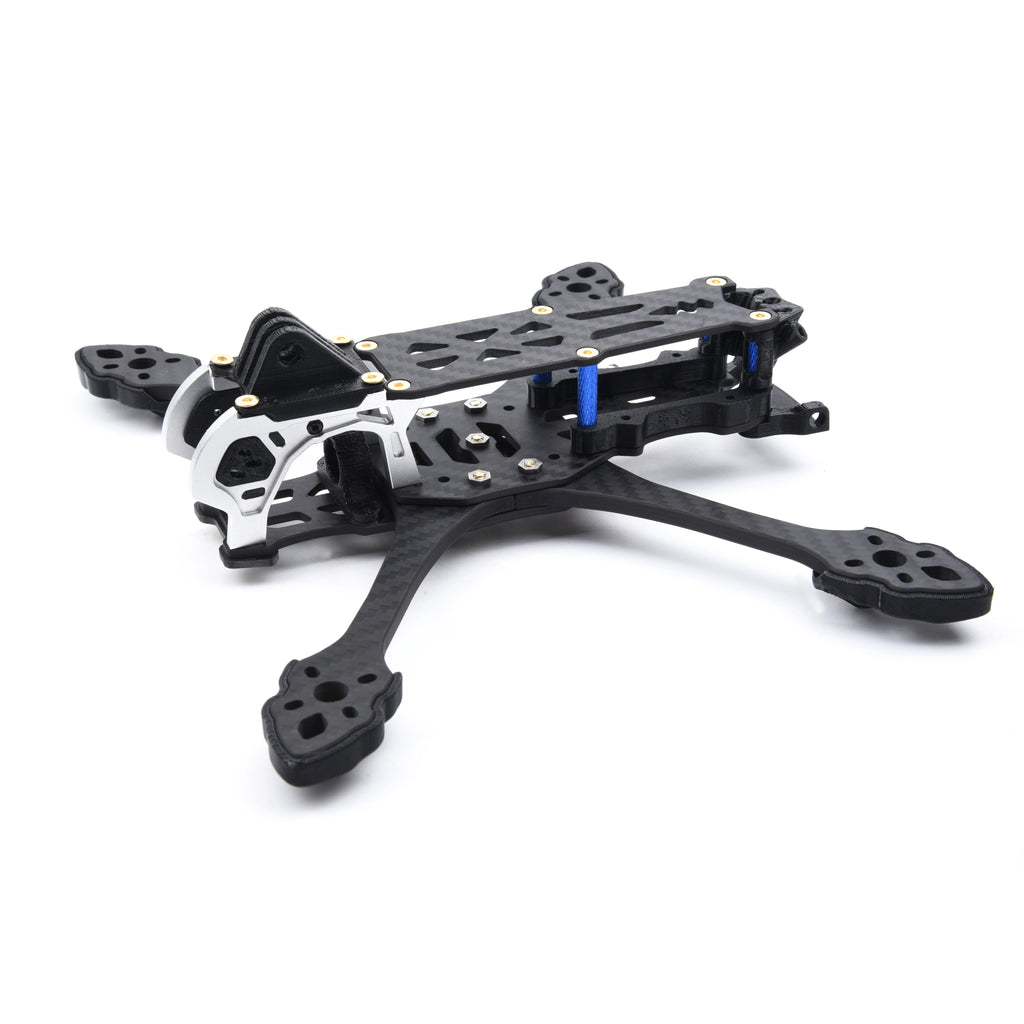

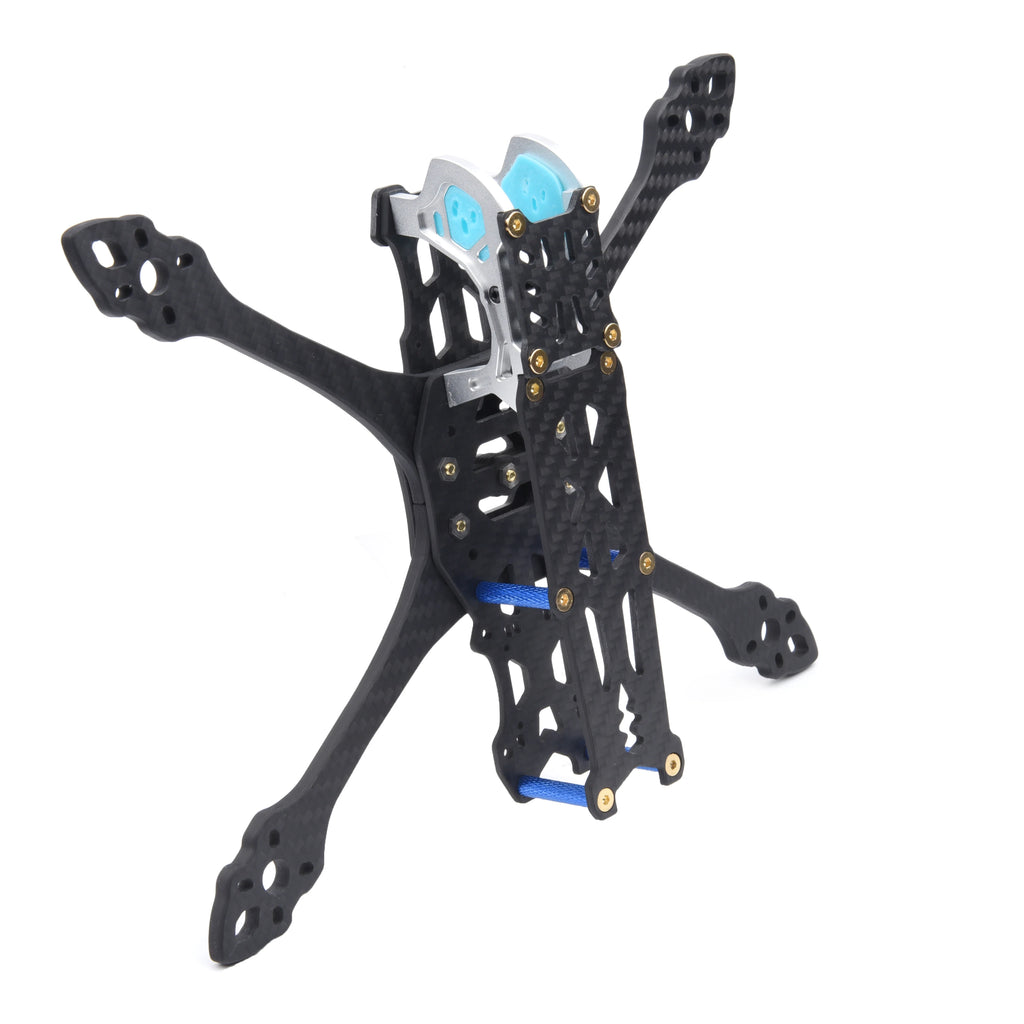

7075 aluminum alloy side plate, new visual effect, durable, effectively protect the FPV lens.

Wide X-arm design, stable and flexible flight attitude.

The video transmission installation holes are compatible with the DJI air Unit

, vista and analog video transmission.

Compatible with lenses with a width of 19-20MM, you can directly install the original DJI lens.

Compatible with 16*16MM and 19*19MM motor mounting holes.

The shock-absorbing design of the frame, the stable operation of the whole machine, and the safe

operation environment of the electronic system.

TPU base, you can install GoPro cameras, and can also install cameras such as Gopro 8.

Parameters:

Wheelbase: 225mm
Other plate thickness: 2.5mm/2mm
Arm thickness: 5.0mm
Flight control installation hole: 30.5*30.5mm
Image transmission installation hole: 30.5*30.5mm / 20*20mm
Motor mounting hole: 16*16mm
Lens size: 19-20mm
Suitable for propeller size: 5 inch propeller

wight : about 210g

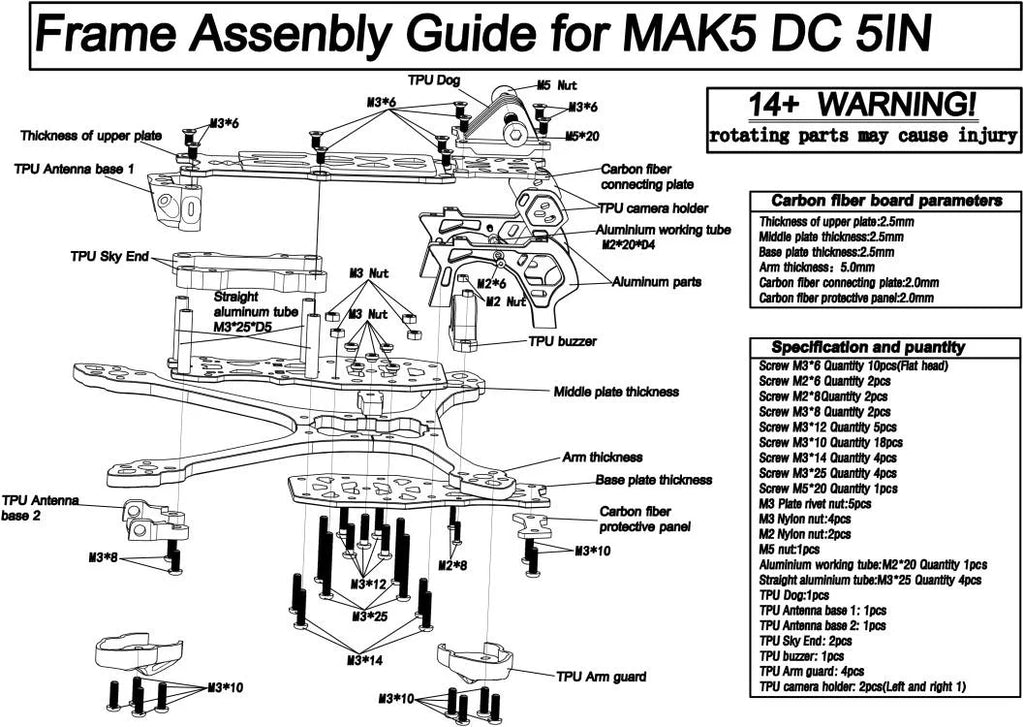

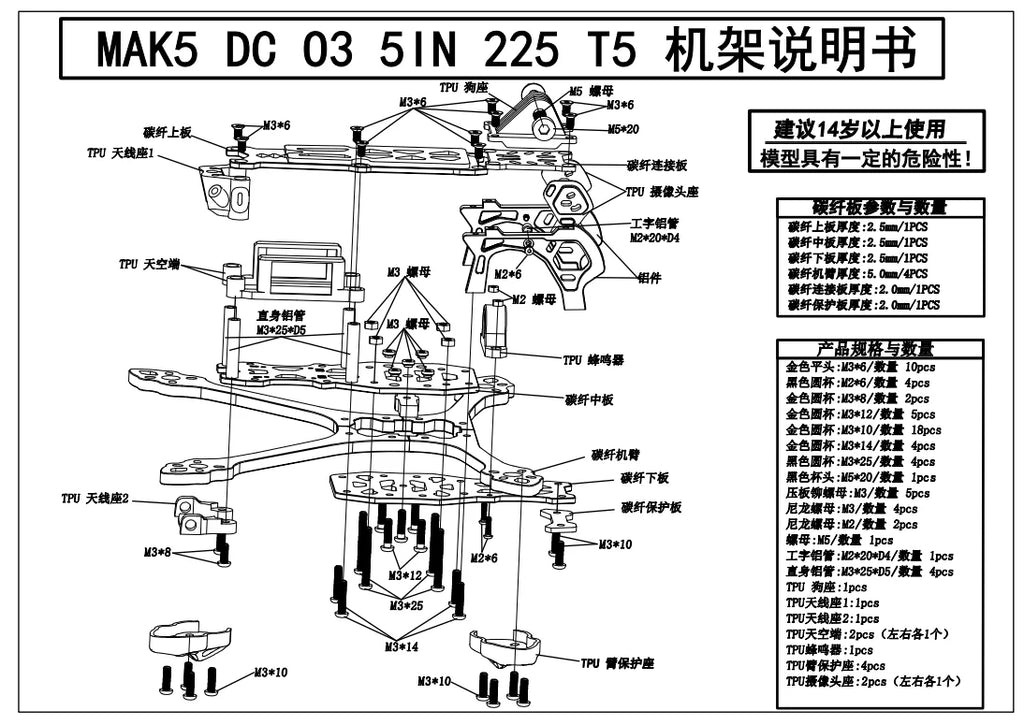

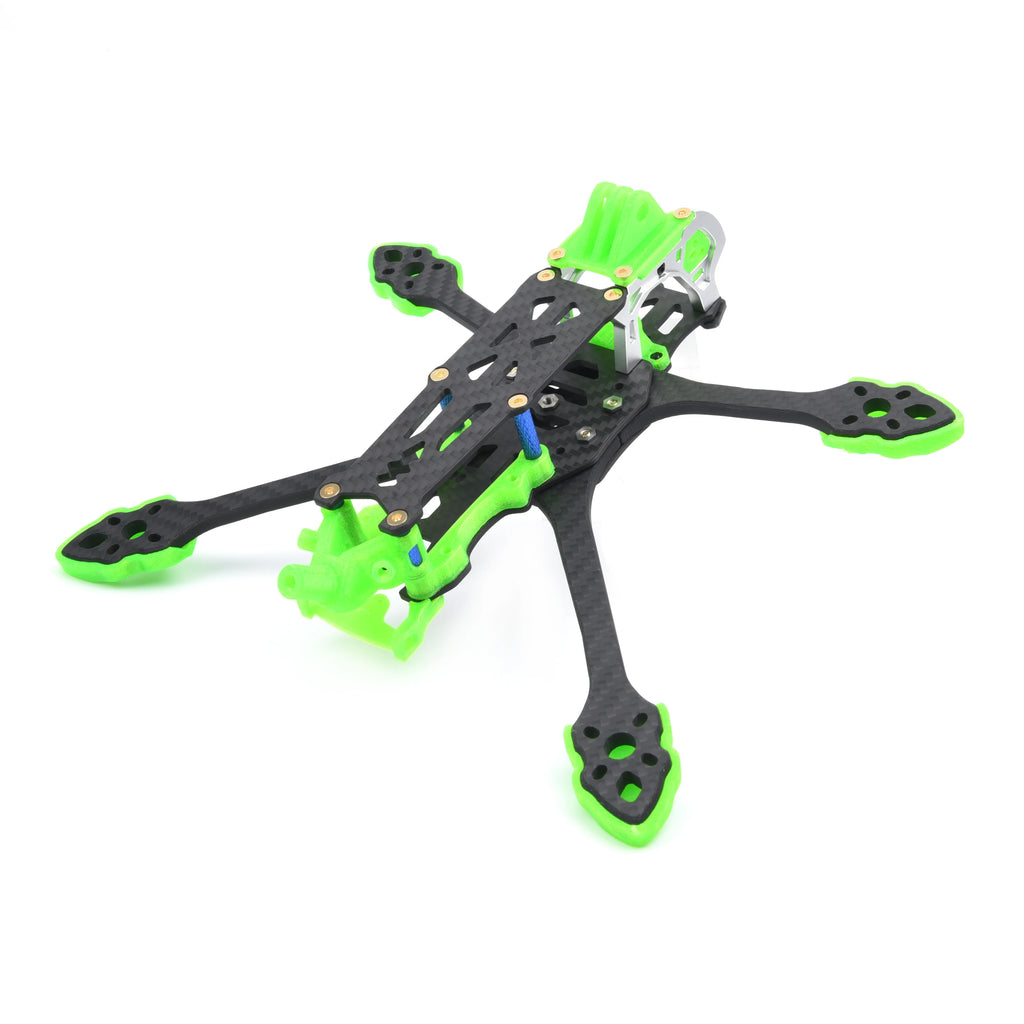

Item:  MARK5 DC 222mm Carbon Fiber Frame

Features:

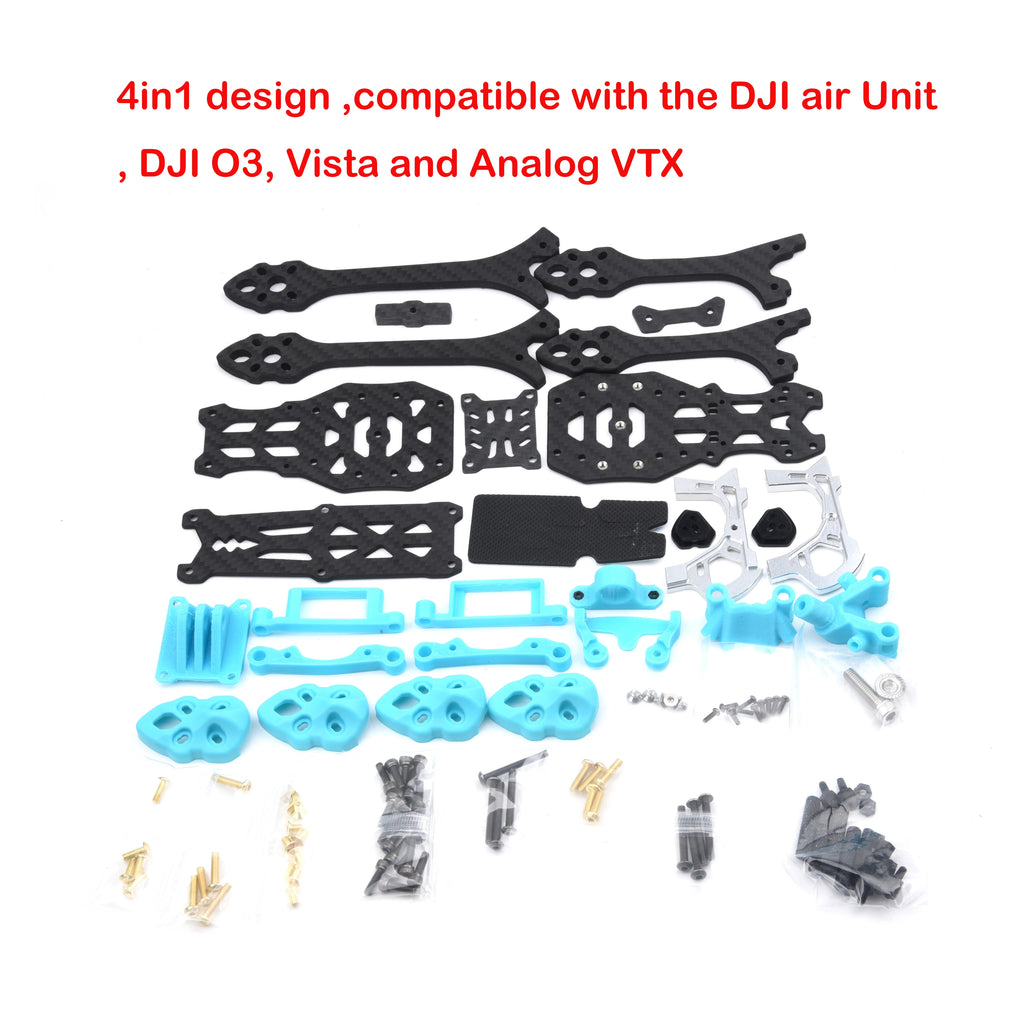

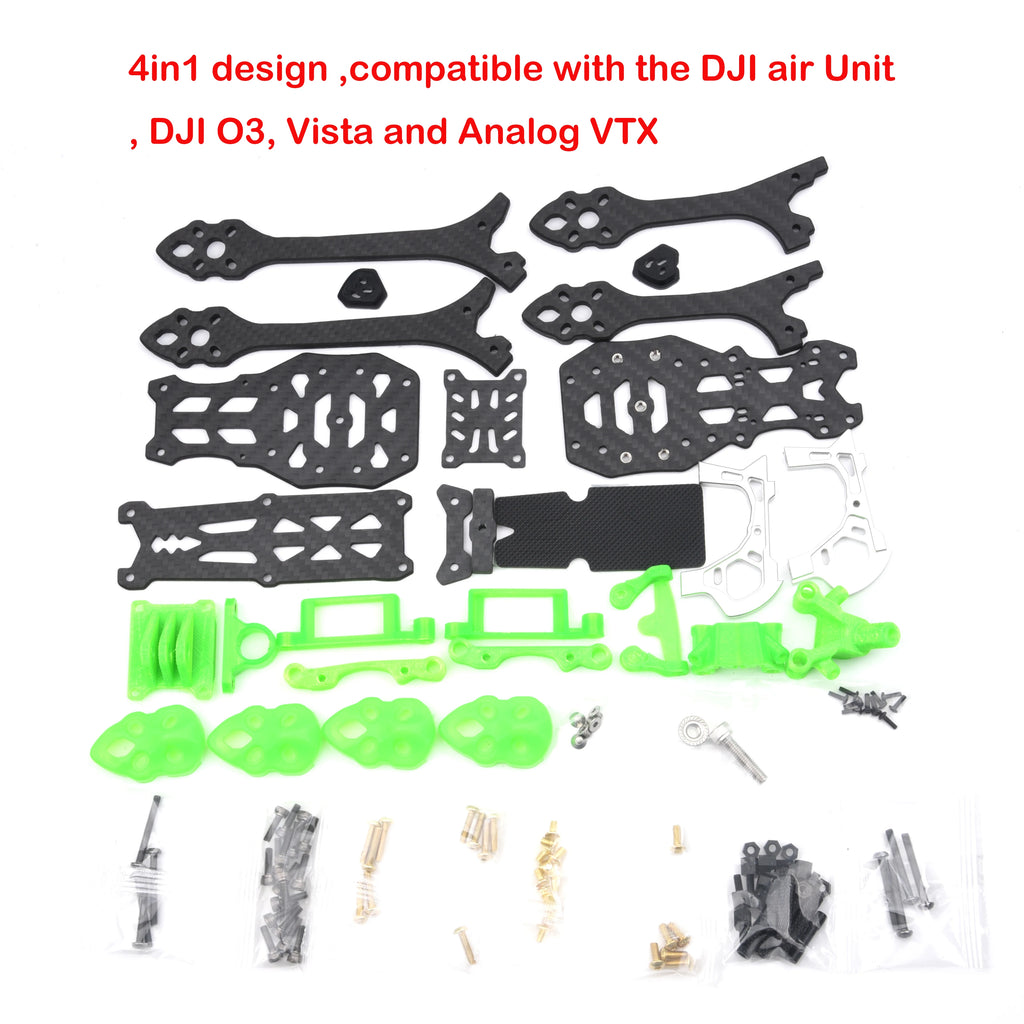

The video transmission installation holes are compatible with the DJI air Unit

, DJI O3, Vista and Analog video transmission.

Note : when using different VTX  please choose the corresponding printing parts .

By modifying only the upper and lower main plates we retained full compatiblity with regular mark5 arms, using standard 5" arms at the front and standard 6" arms at the back.

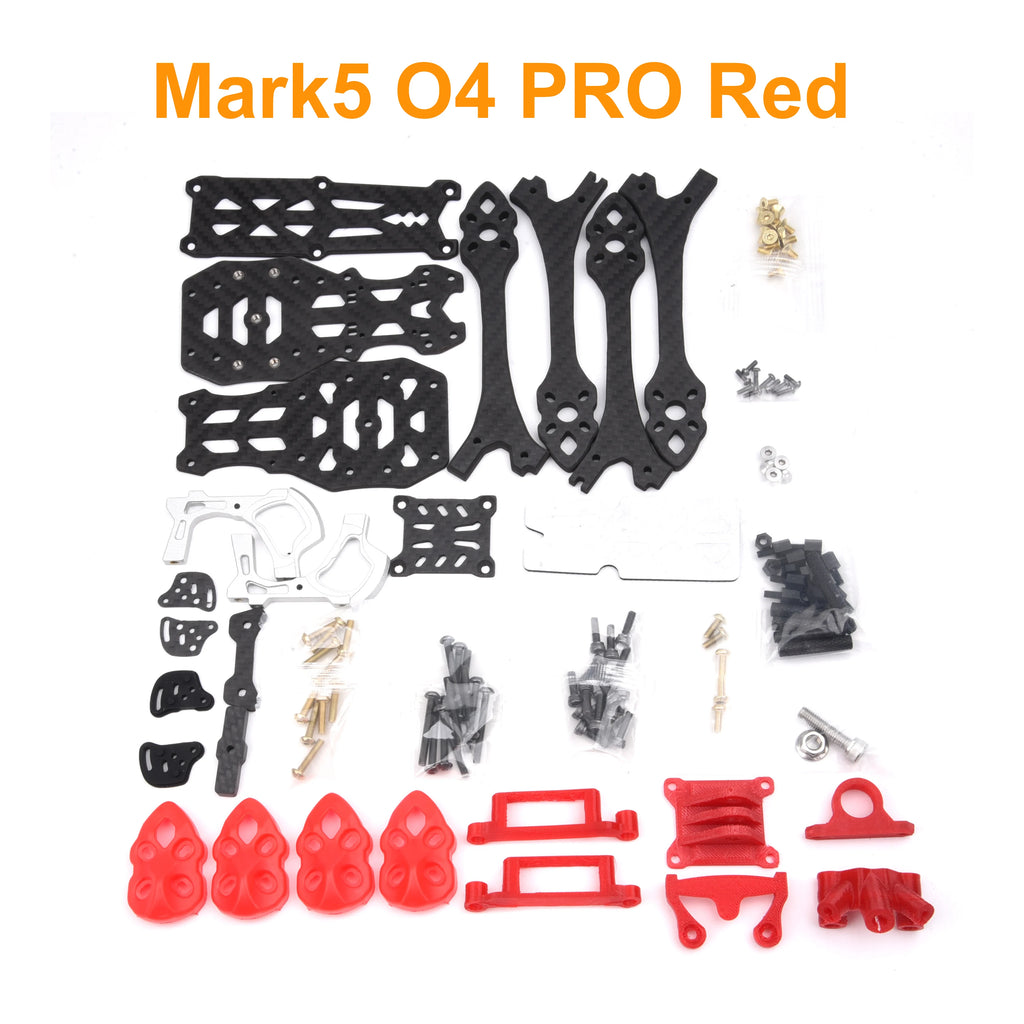

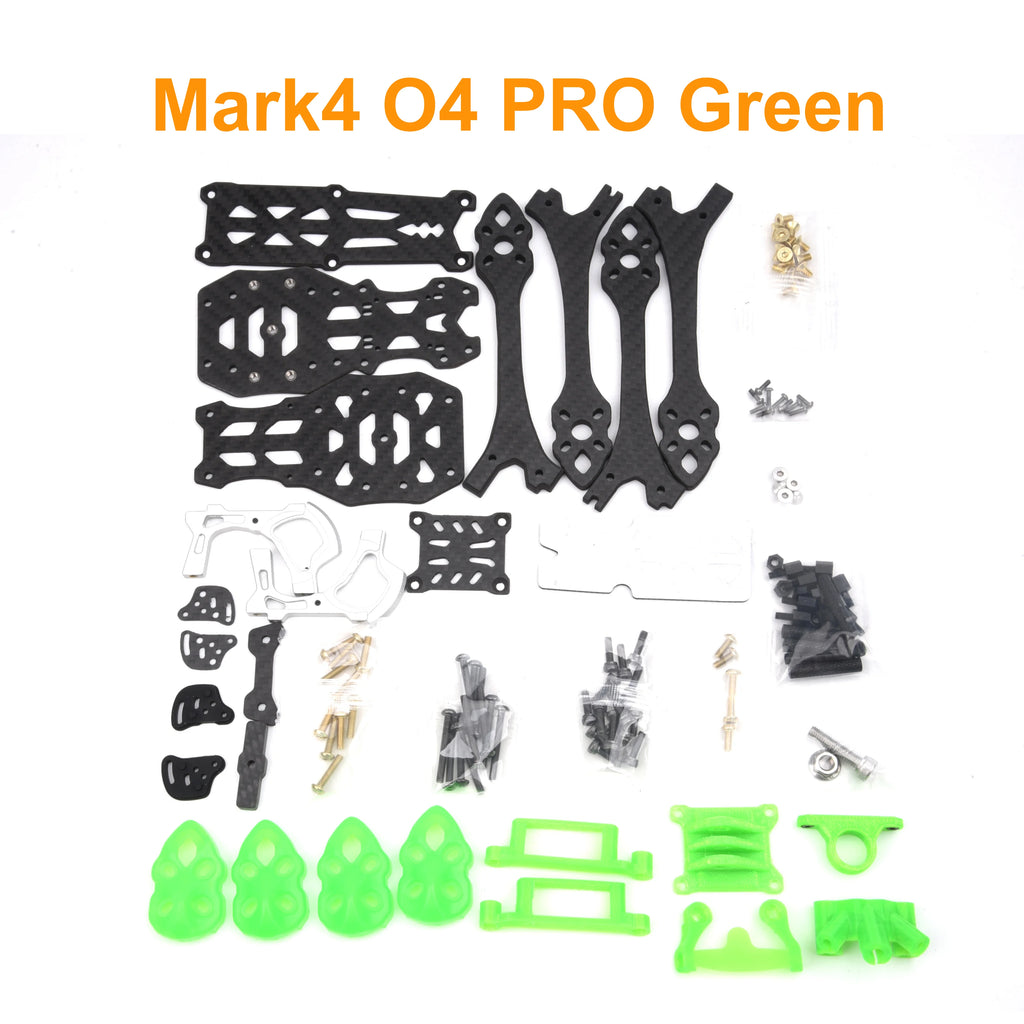

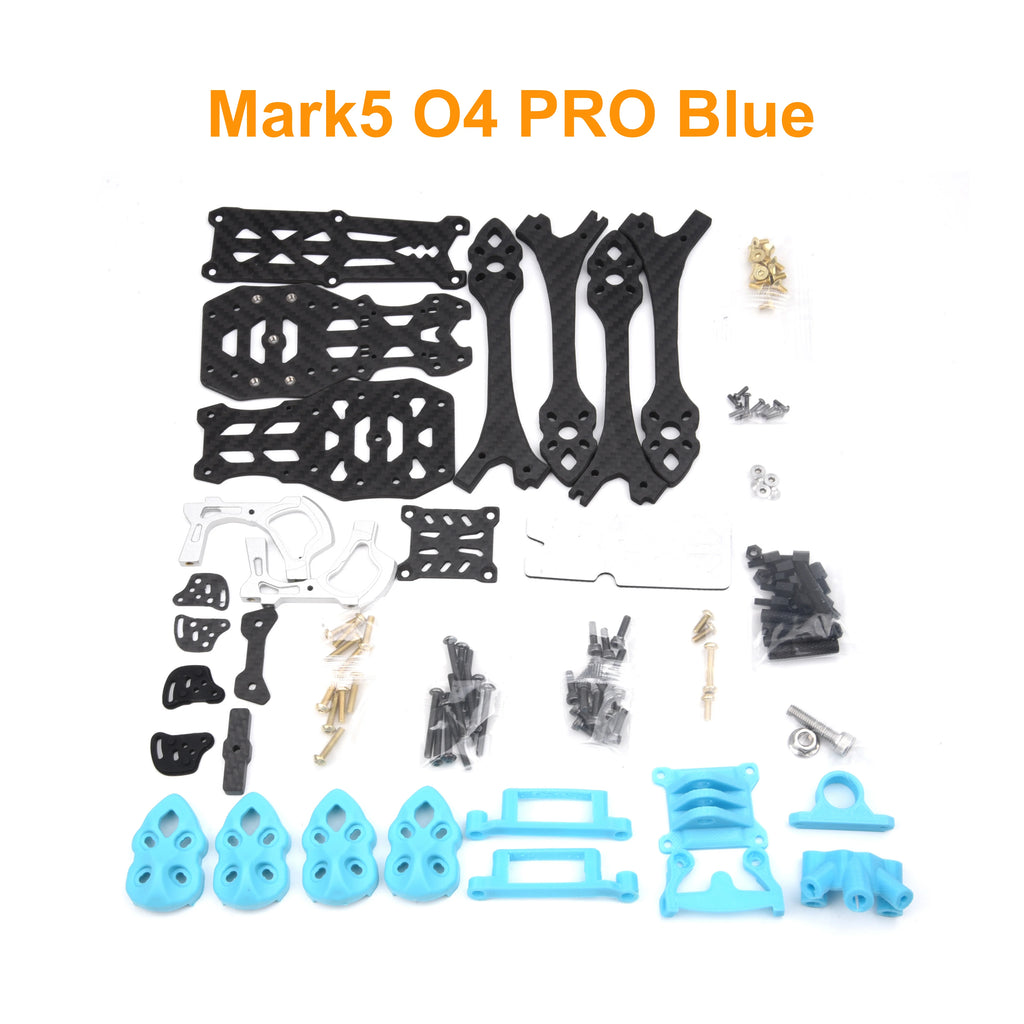

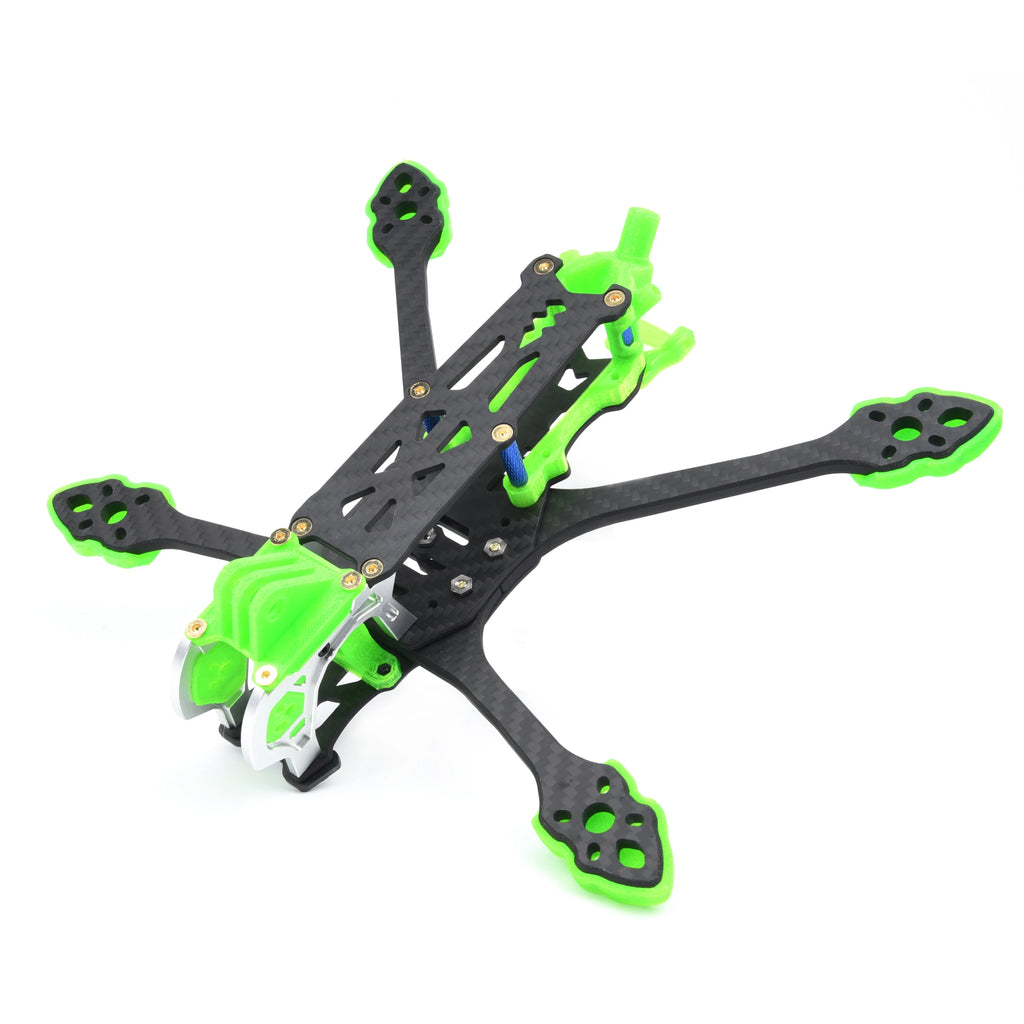

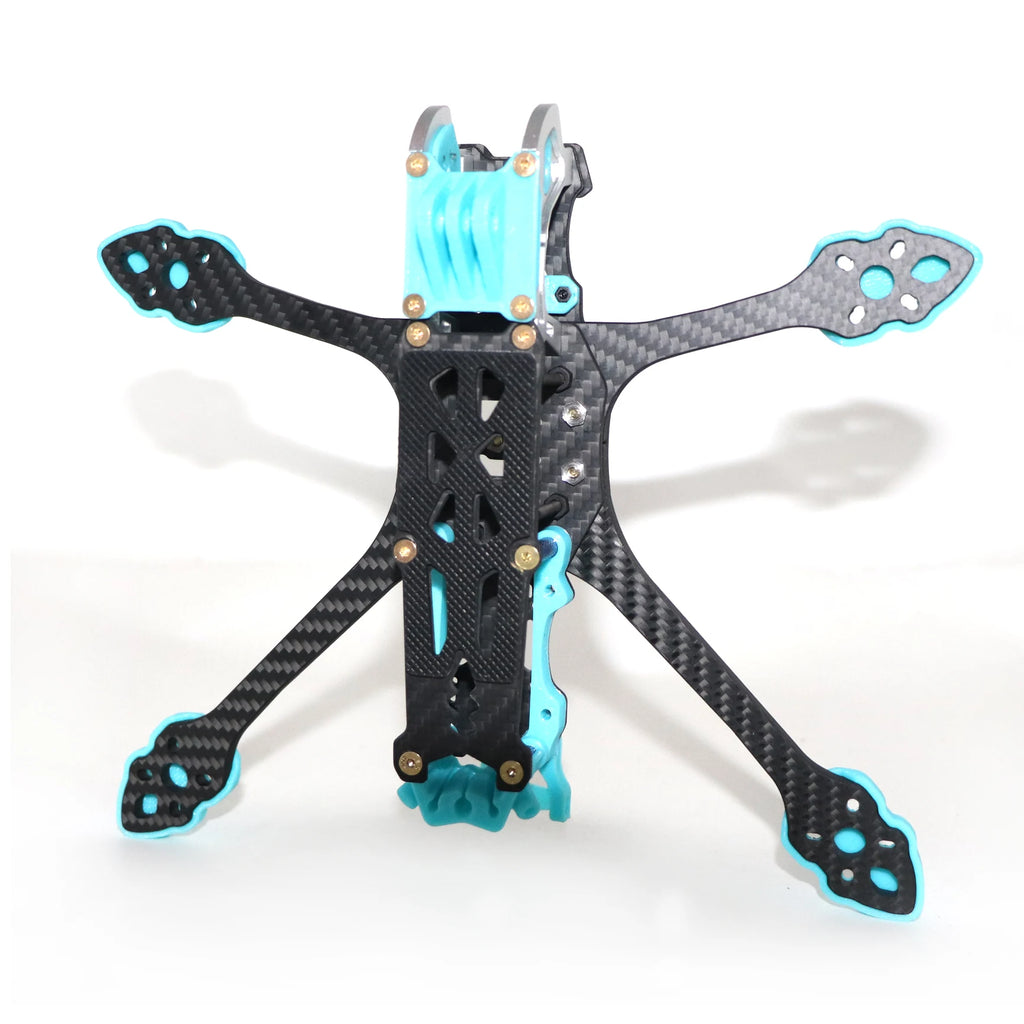

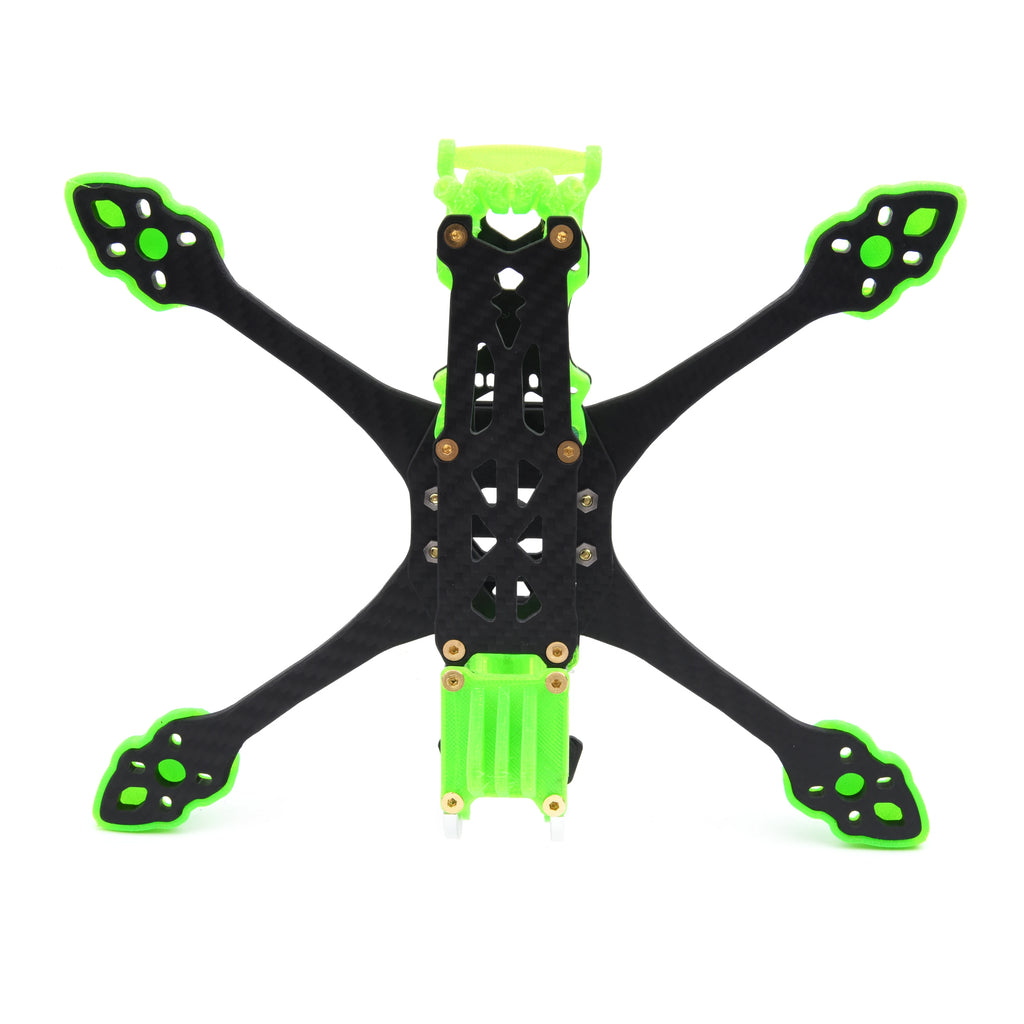

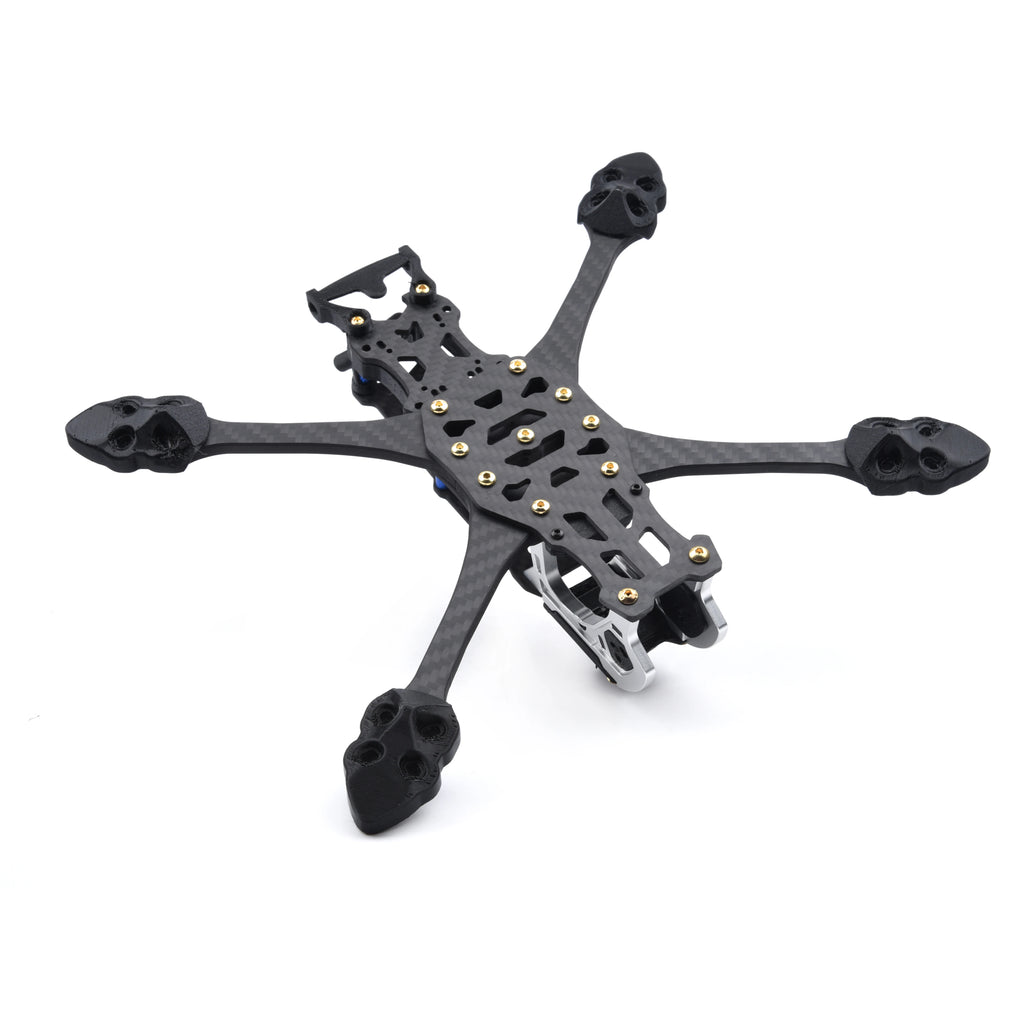

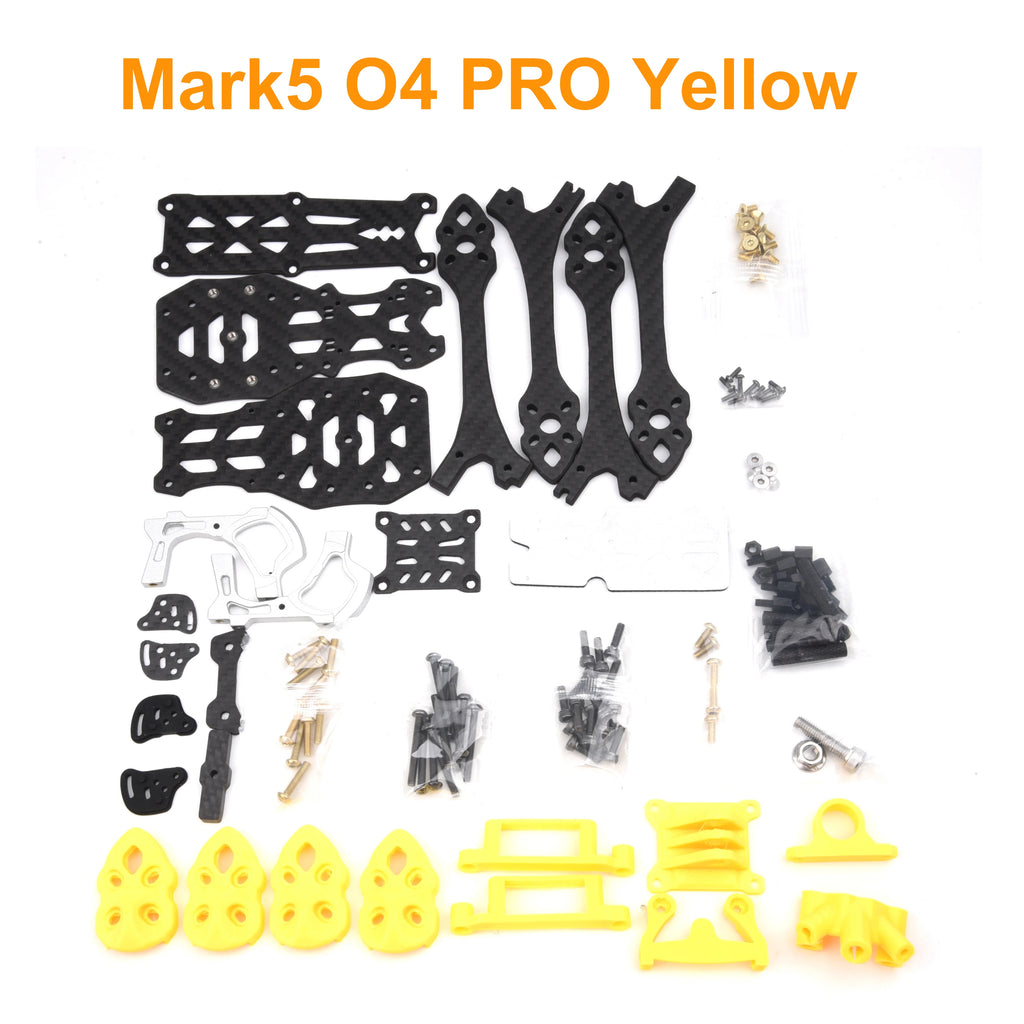

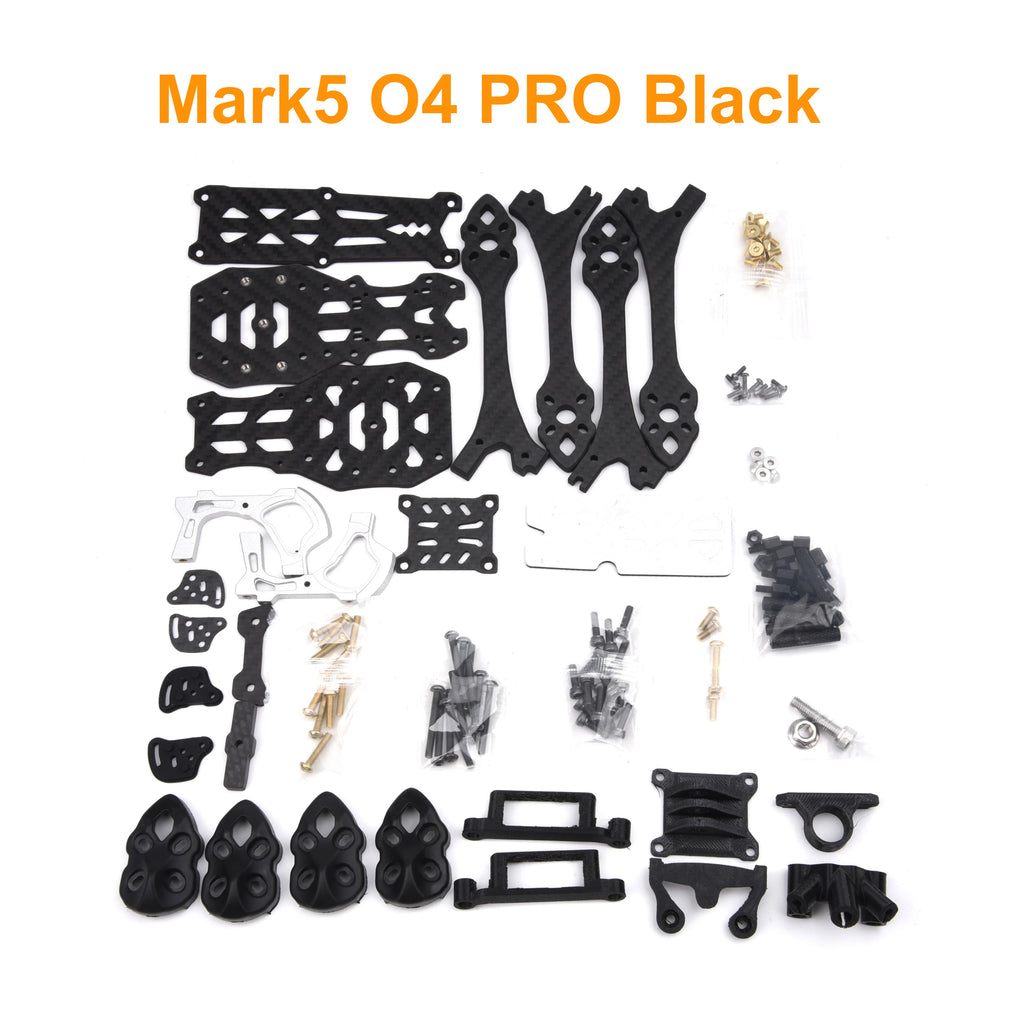

Item:  MARK5 O4 PRO Carbon Fiber Frame

Feature:

Name:MARK5 04 PRO 225 5-inch Frame

Wheelbase:225MM

Dimensions:177.42MM*137.52MM Weight:216.94G(including prints)

Base plate thickness:2.5MM

Upper plate thickness:2.5MM

Plywood thickness:2.5MM

Side plate thickness:1.0MM

Arm thickness:5.0MM

Camera mounting holes spacing. 19MM&20MM

Internal height:24MM

Compatible with 20*20MM&30.5*30.5MM

Compatible with 30.5*30.5MM

Motor mounting holes:16*16&19*19MM

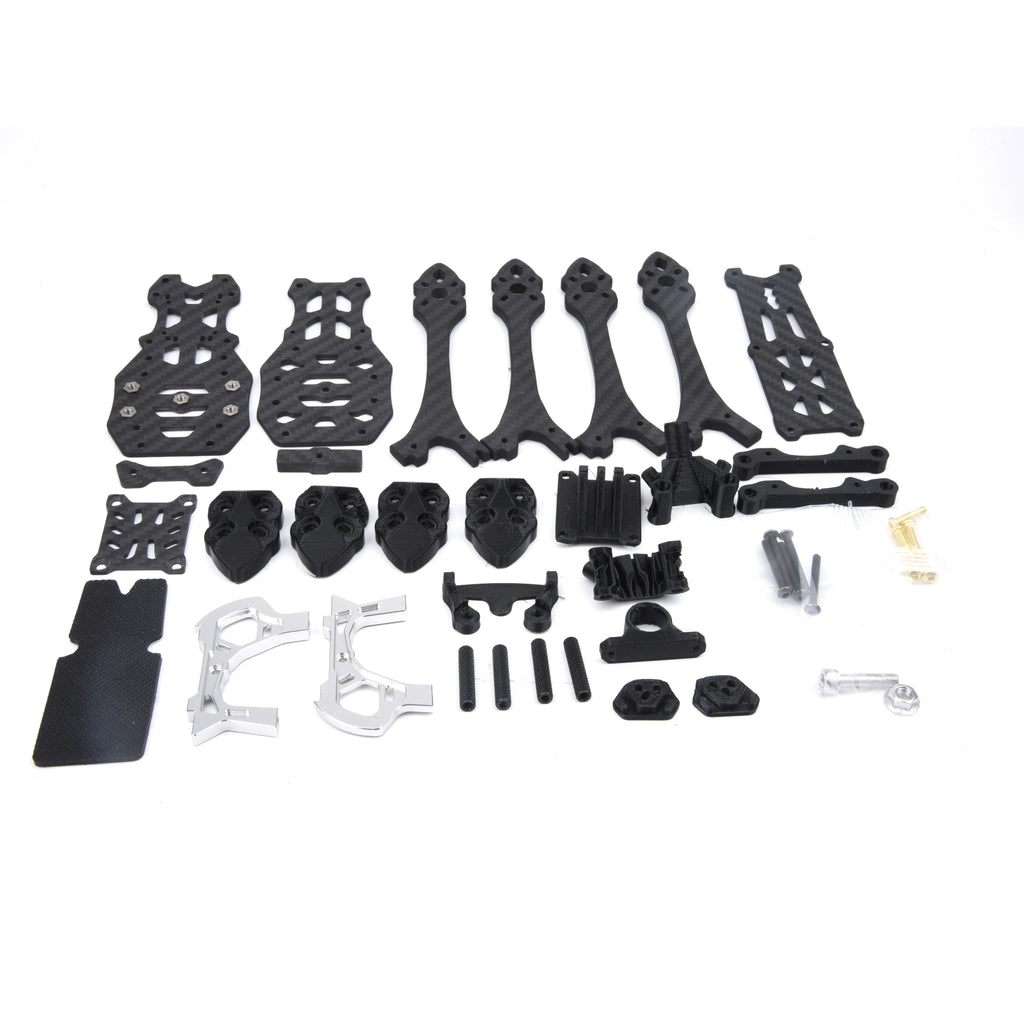

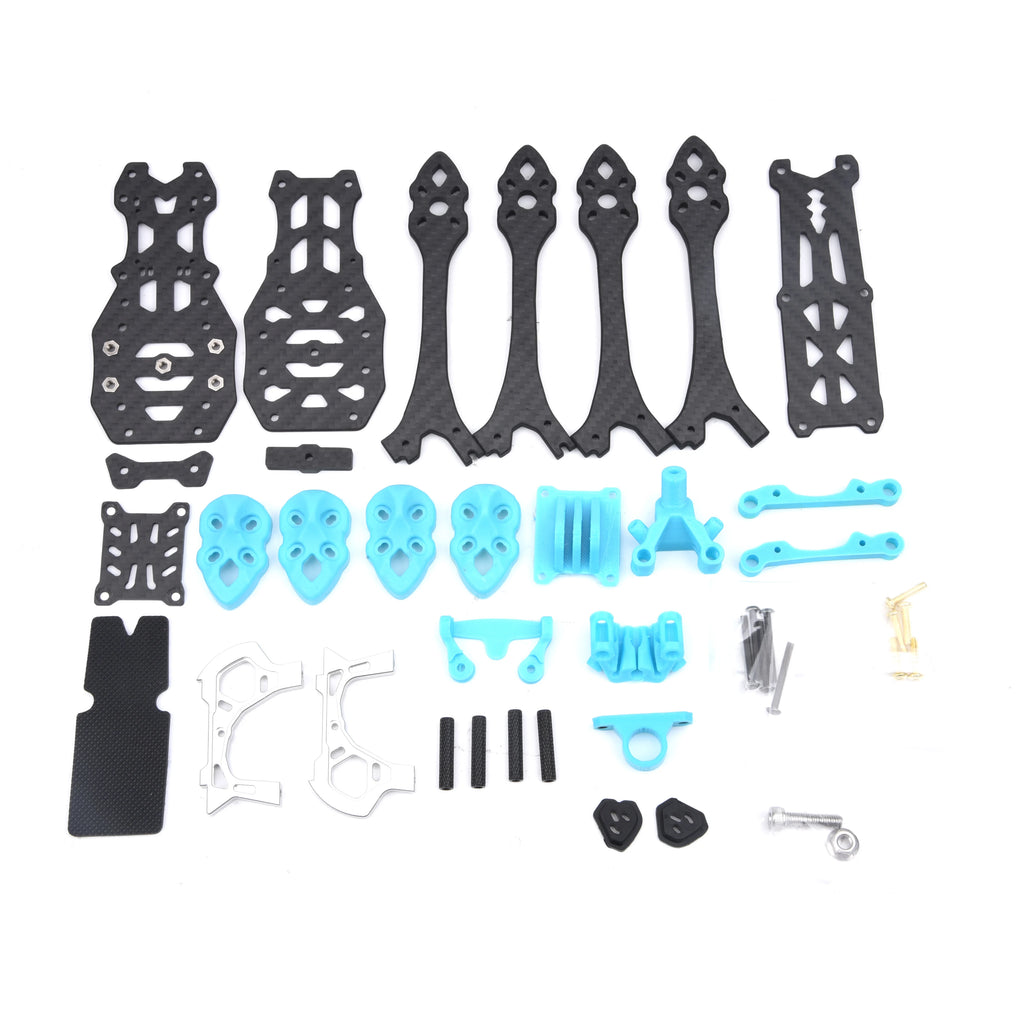

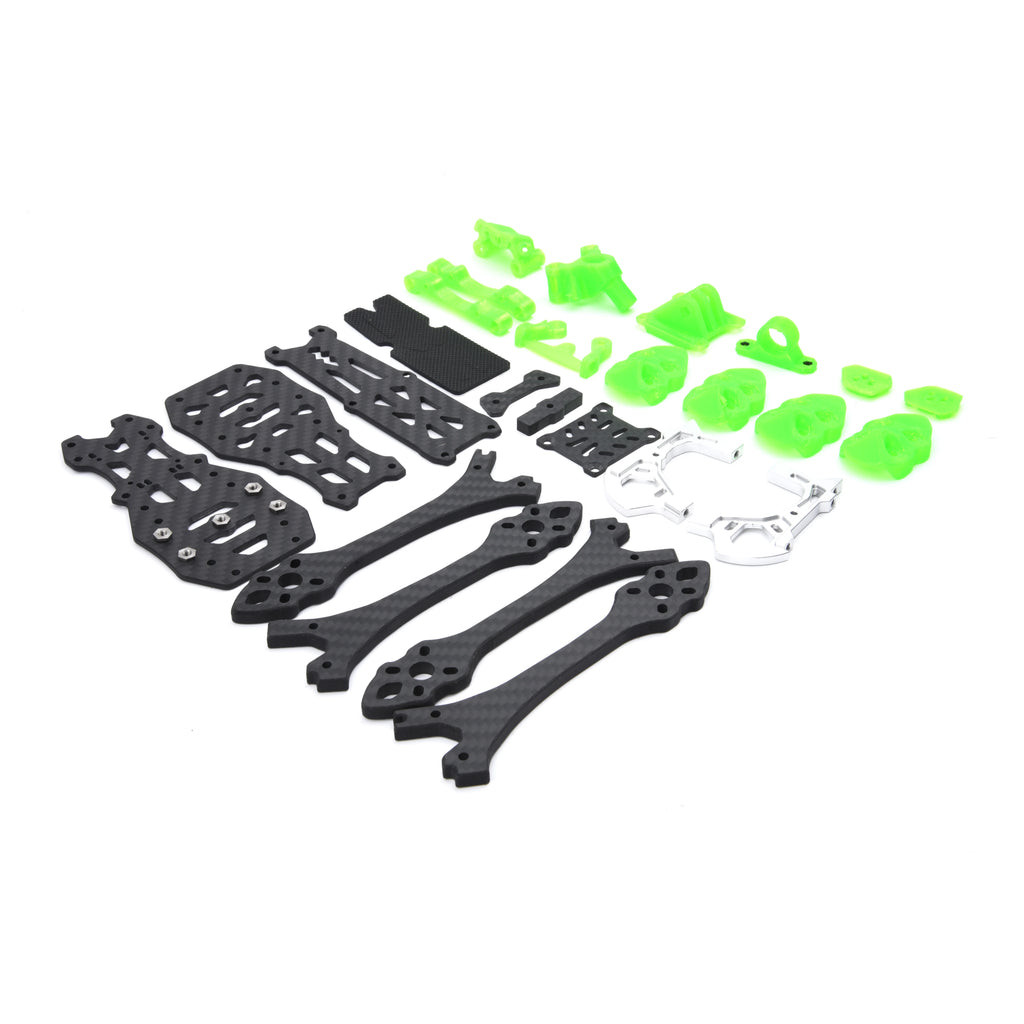

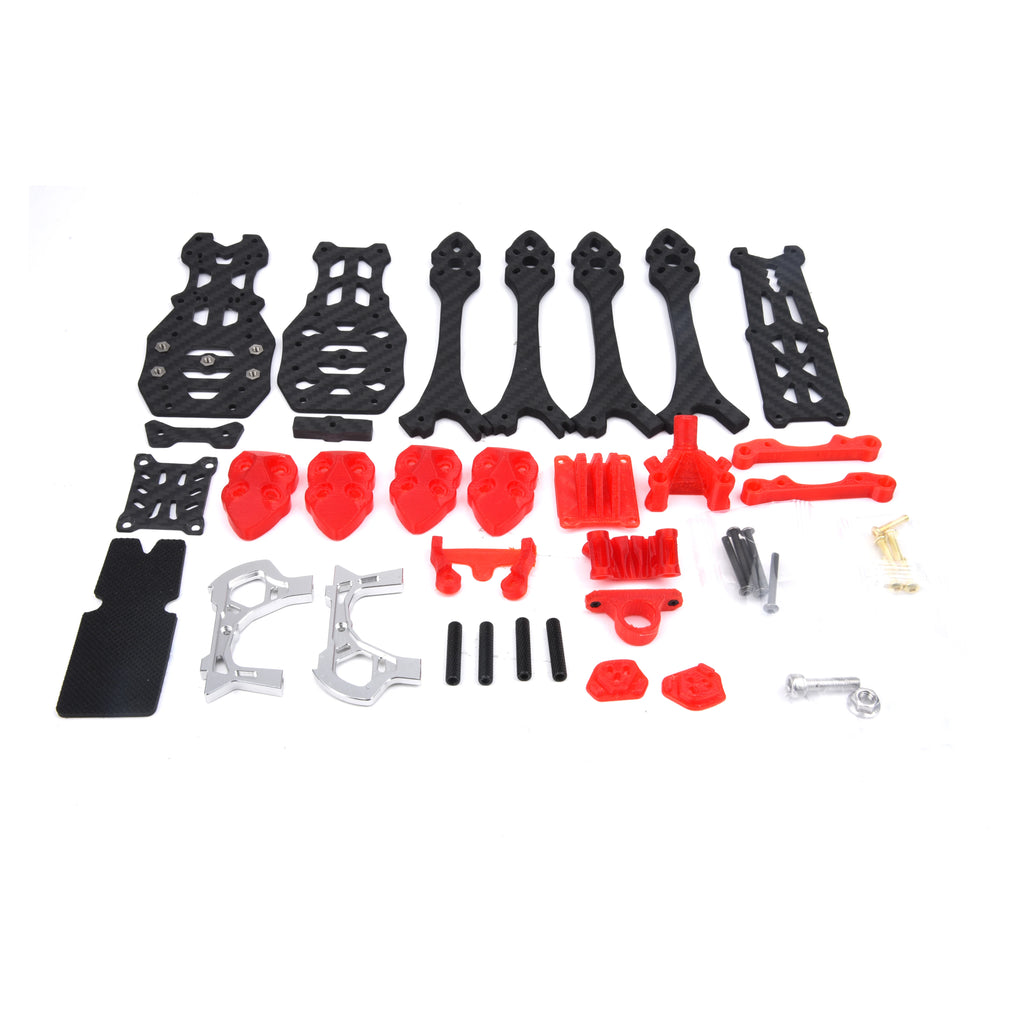

Package including :

1 x  5inch frame kit  (send by your choice )
